ComfyGo Remote Controlled Electric Wheelchair with Automatic Reclining Backrest & Lifting Leg Rests - X-9

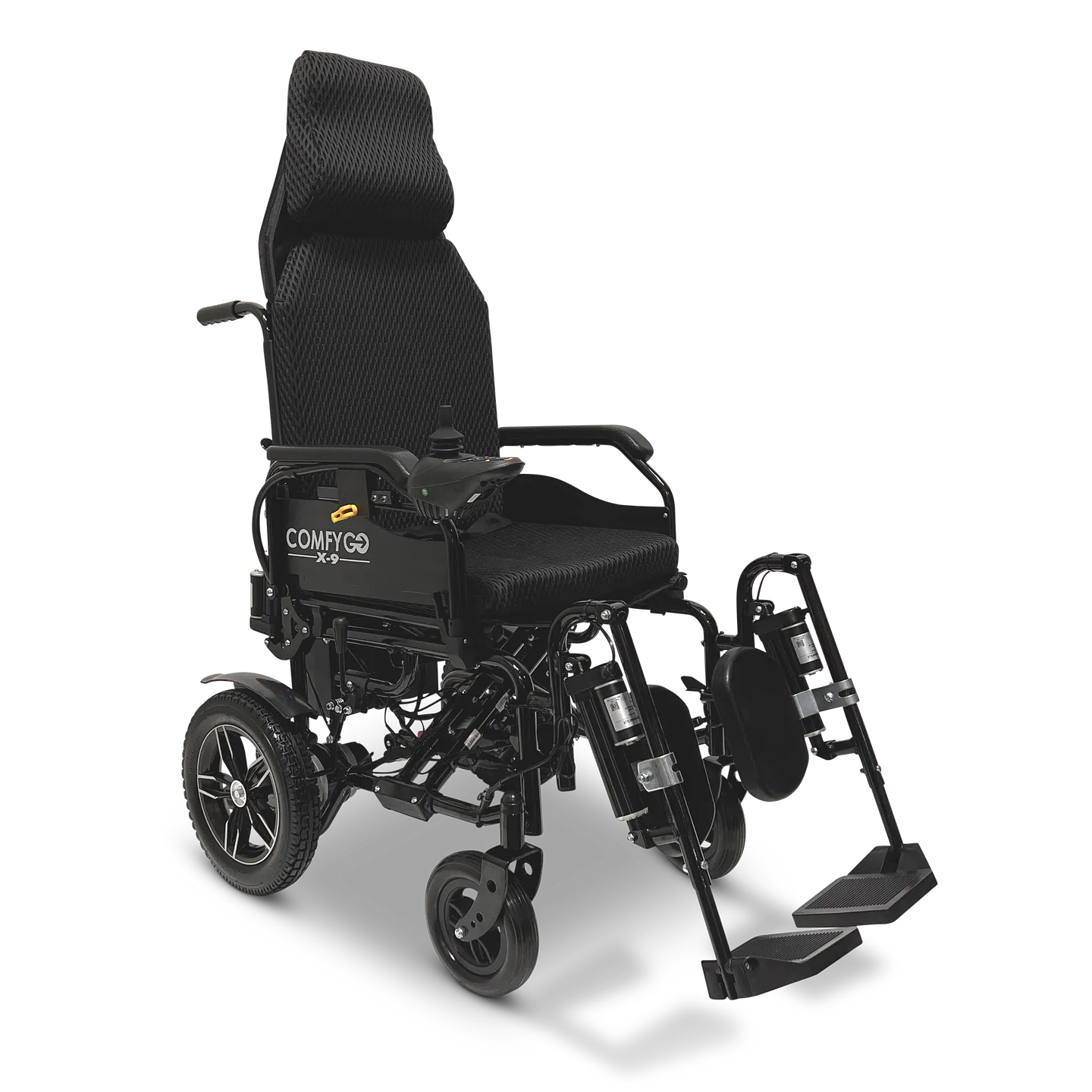

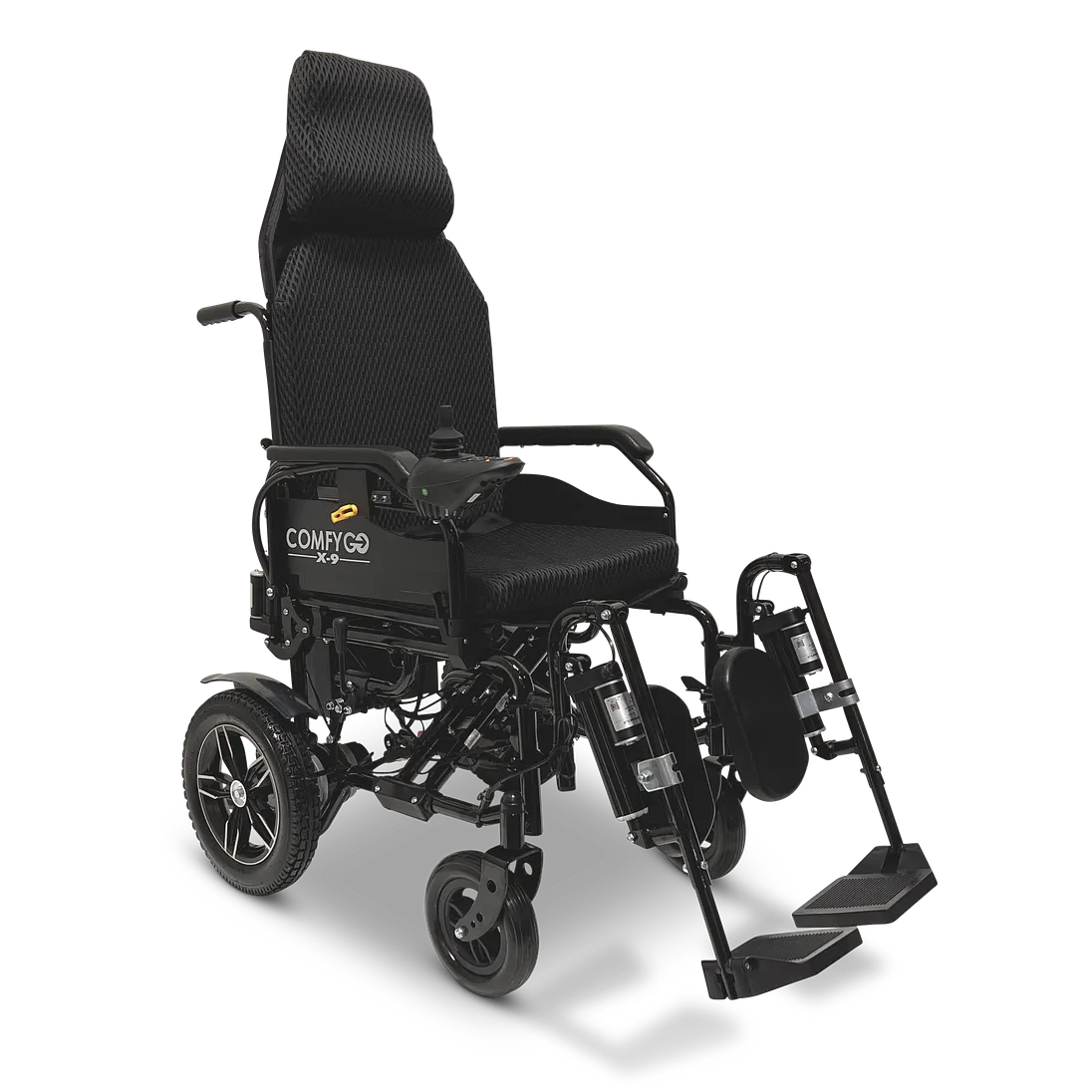

Electric Wheelchair ComfyGO X-9 with Automatic Reclining Backrest & Lifting Leg Rests

The ComfyGO X-9 redefines mobility with its advanced design and unparalleled comfort. Featuring independent control of the backrest and leg rests, this wheelchair provides a tailored experience for every user. Easily storable in car trunks, it offers a range of up to 17 miles with its 20AH battery, setting a new standard for convenience in its class. Powered by dual 250-watt motors, it handles inclines up to 6 degrees effortlessly.

Key Features

• 360° Joystick: Weighing just 86 lbs (without the battery), the X-9 is lightweight yet robust. It comes with a 3-year warranty on the frame and a 1-year warranty on motors, electronics, and the battery. The 360-degree universal joystick allows easy navigation, and you can control the backrest and leg rests via the joystick or remote control.

• Ultimate Comfort: The independent reclining backrest and lifting leg rests offer superior comfort. Its foldable design ensures easy storage and transportation, while powerful motors and long battery life provide the autonomy needed for daily use.

• Airline & Cruise Approved: The 12AH lithium-ion battery is approved for airline and cruise travel, offering up to 10 miles of driving range. For longer journeys, the 20AH battery provides up to 17 miles, though it is not airline or cruise approved.

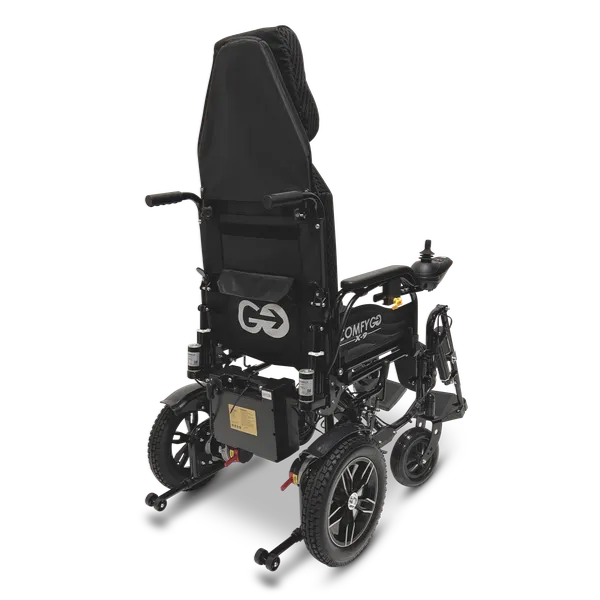

• Battery and Charger: The X-9 includes two battery options: a 12AH (288WH) lithium-ion battery, approved for travel, and a 20AH (480WH) battery for extended range. Charging takes 6 to 8 hours with the included 24V 2A charger. An optional 24V 3A charger is available for faster charging.

• Motors and Range: Dual 250W motors provide 500W of total power, capable of climbing up to 6-degree inclines. The 12AH battery offers a range of up to 10 miles, while the 20AH battery extends it to 17 miles. Actual range may vary based on driving habits, weather, and road conditions.

• Intelligent Electromagnetic Brakes: Integrated into the motors, these brakes enhance safety, ensure smooth stops, and reduce wear on components. They prevent the wheelchair from rolling on slopes and require less maintenance than traditional braking systems.

• Travel Friendly: The foldable X-9 is perfect for travel, with its 12AH battery approved for most major airlines and cruise lines. Be sure to check with your airline or cruise line for specific battery regulations.

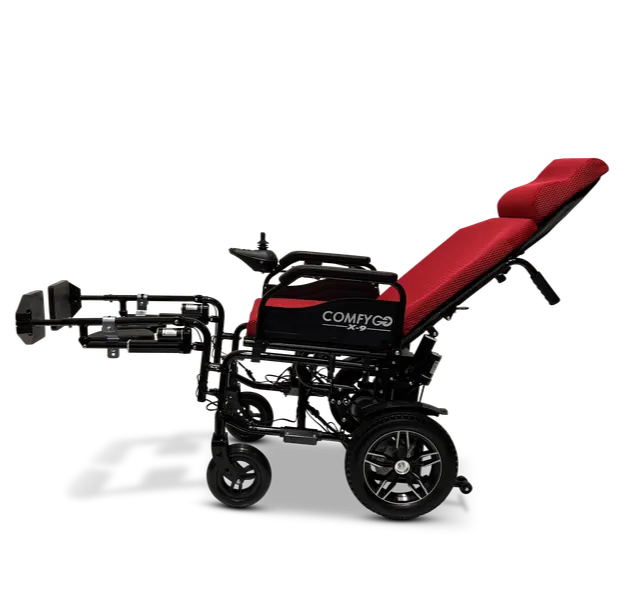

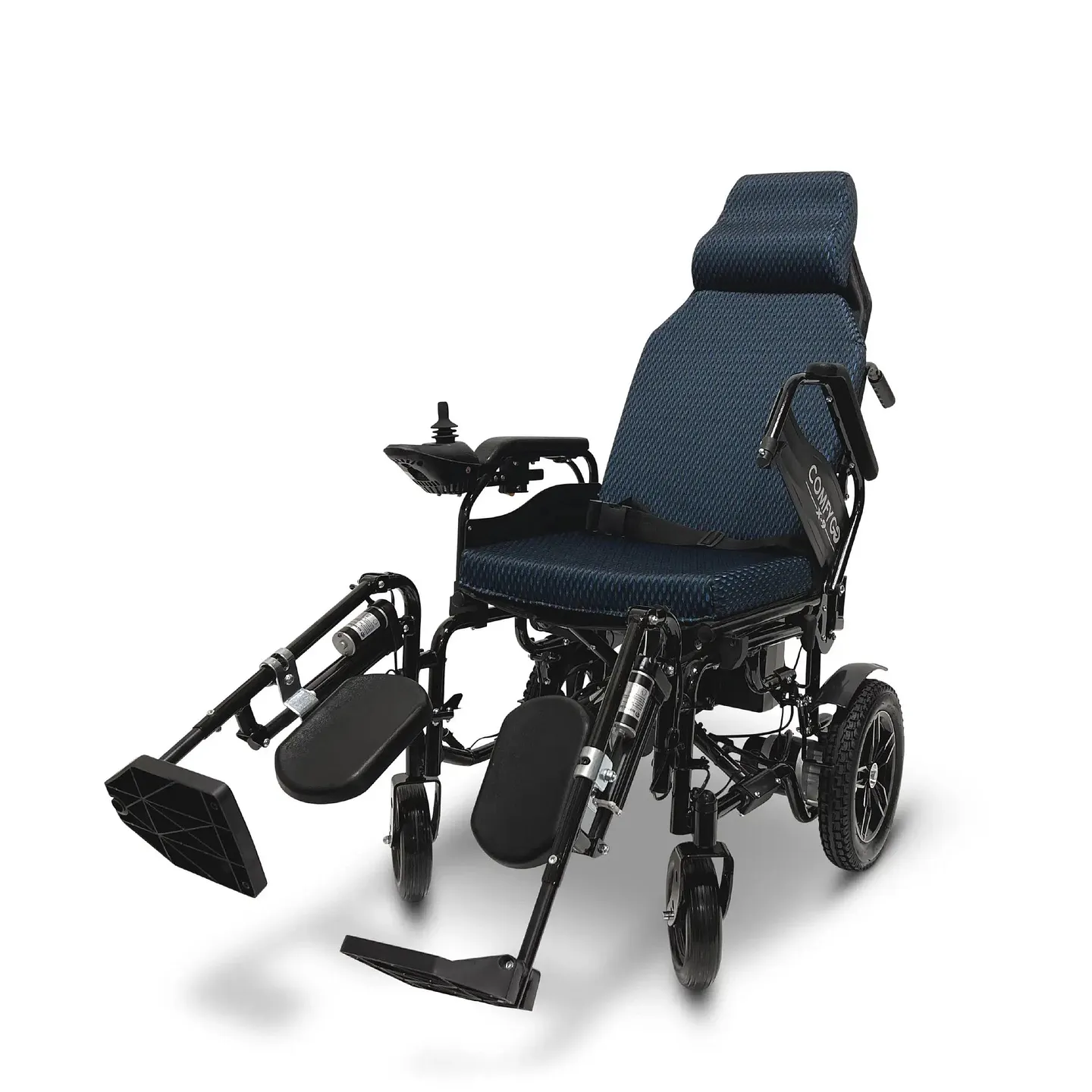

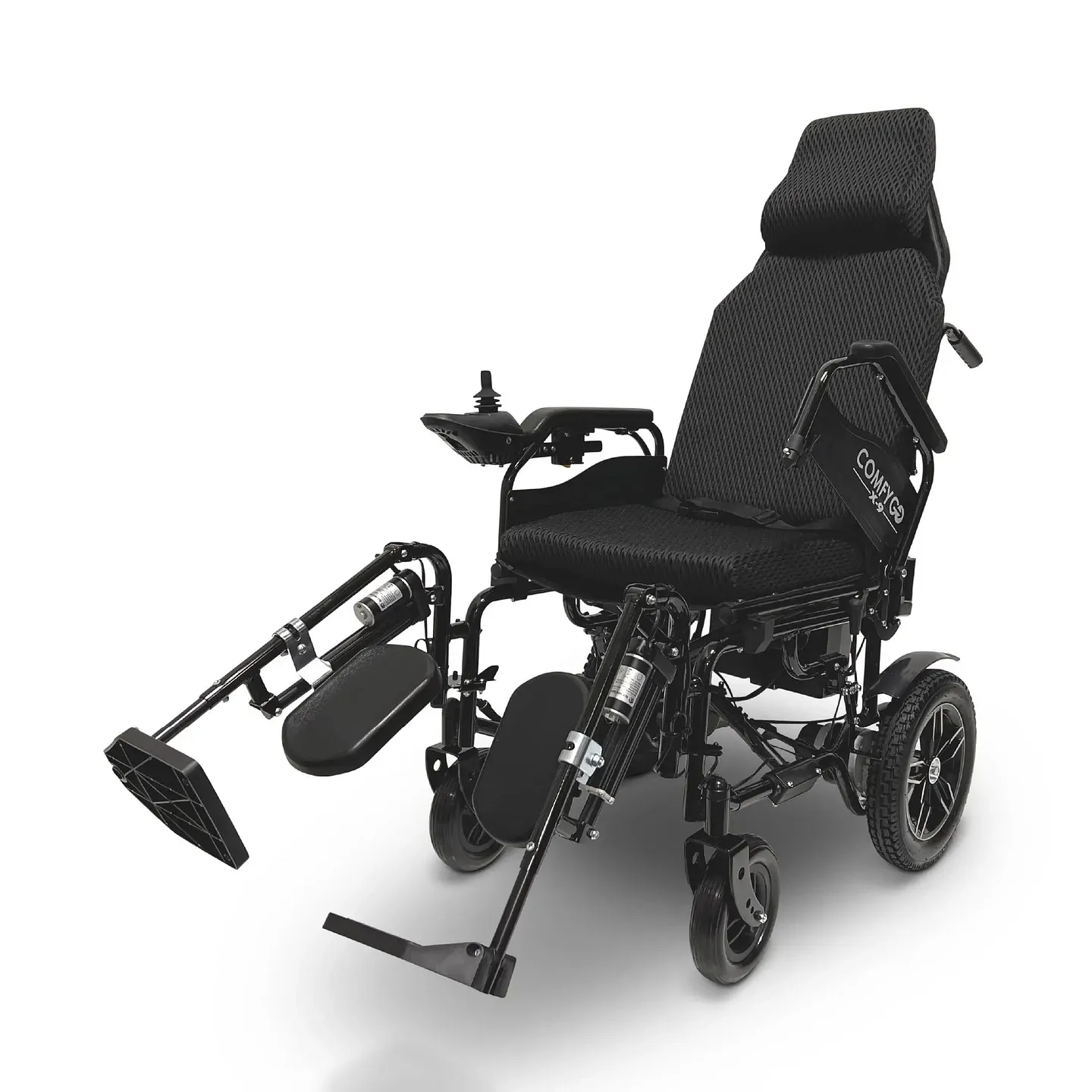

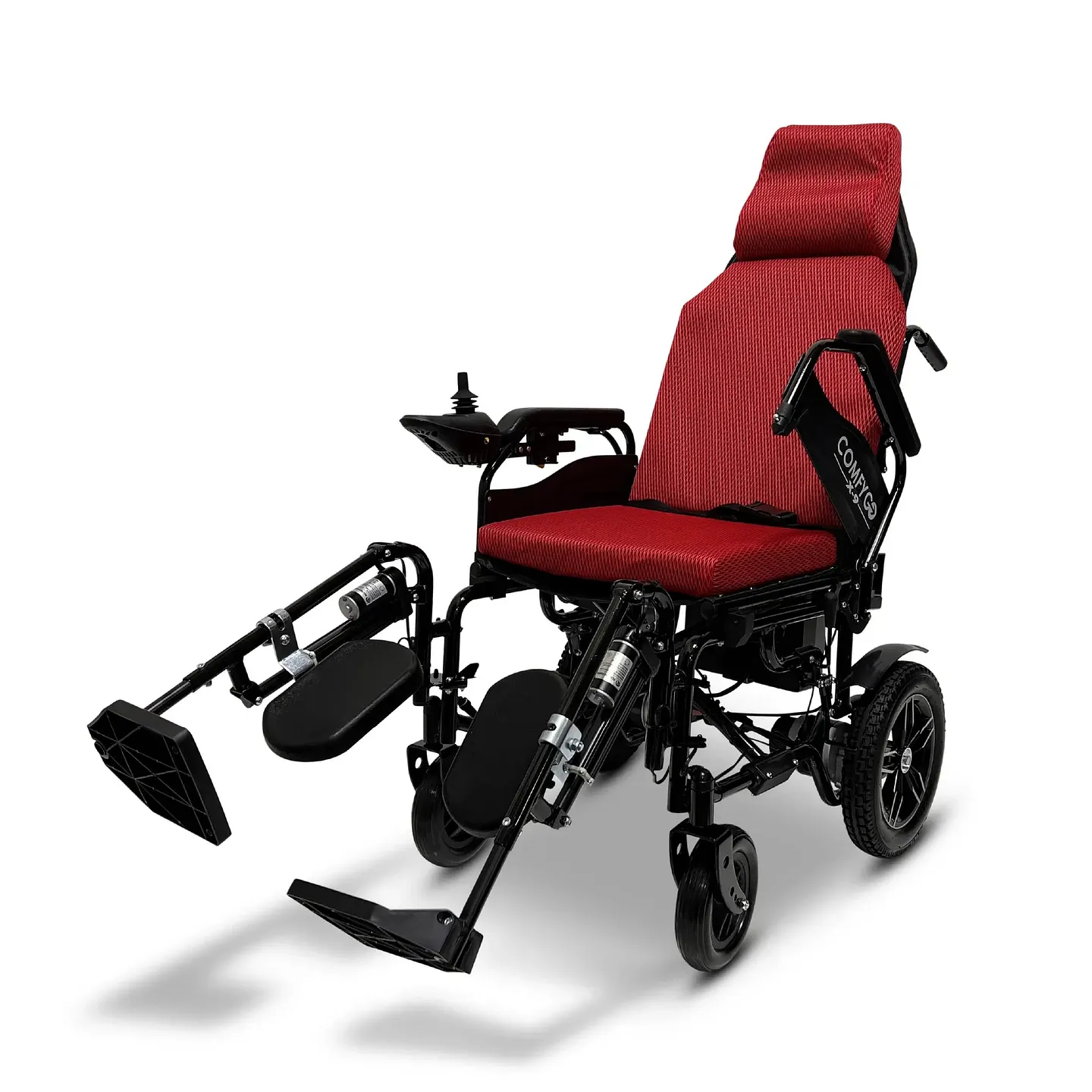

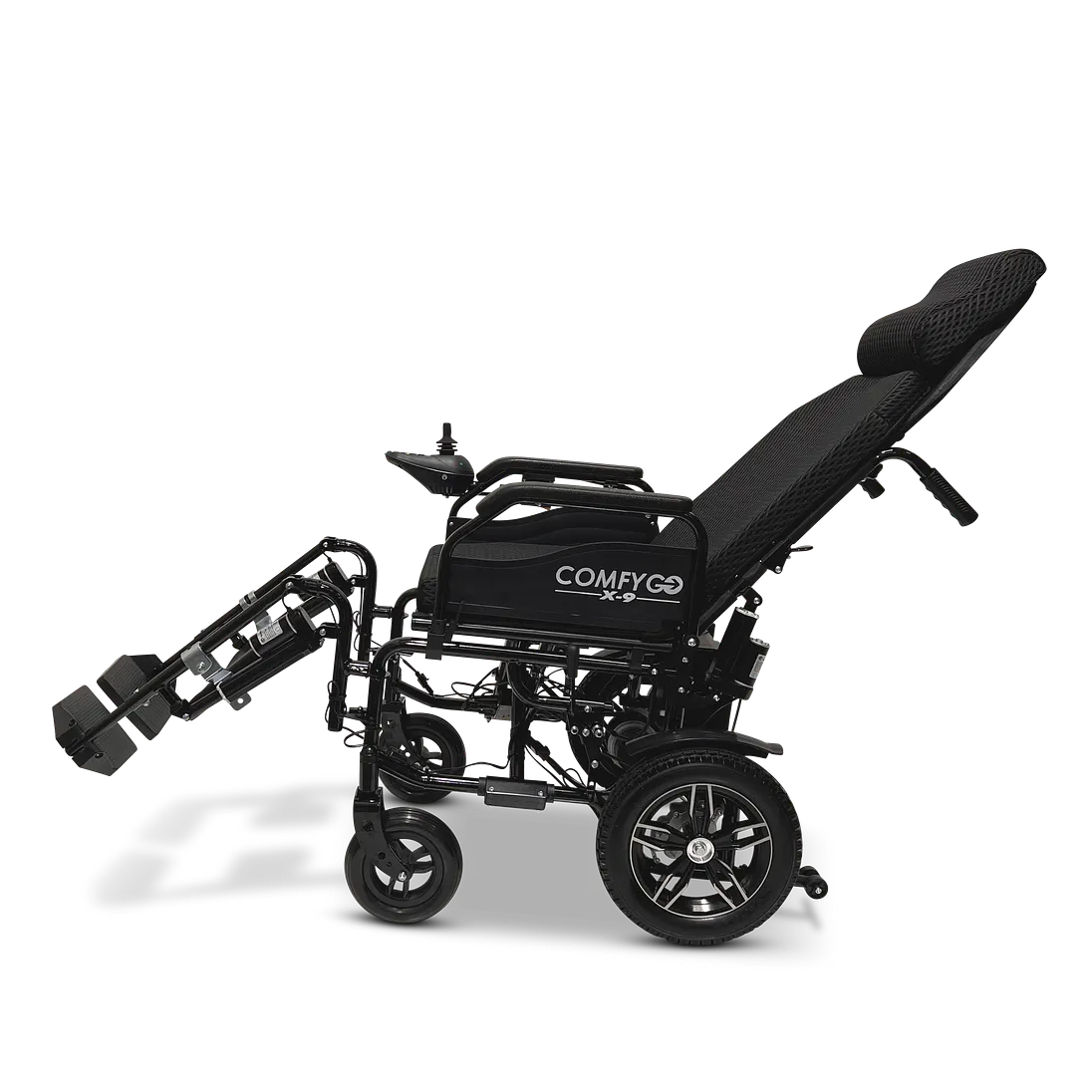

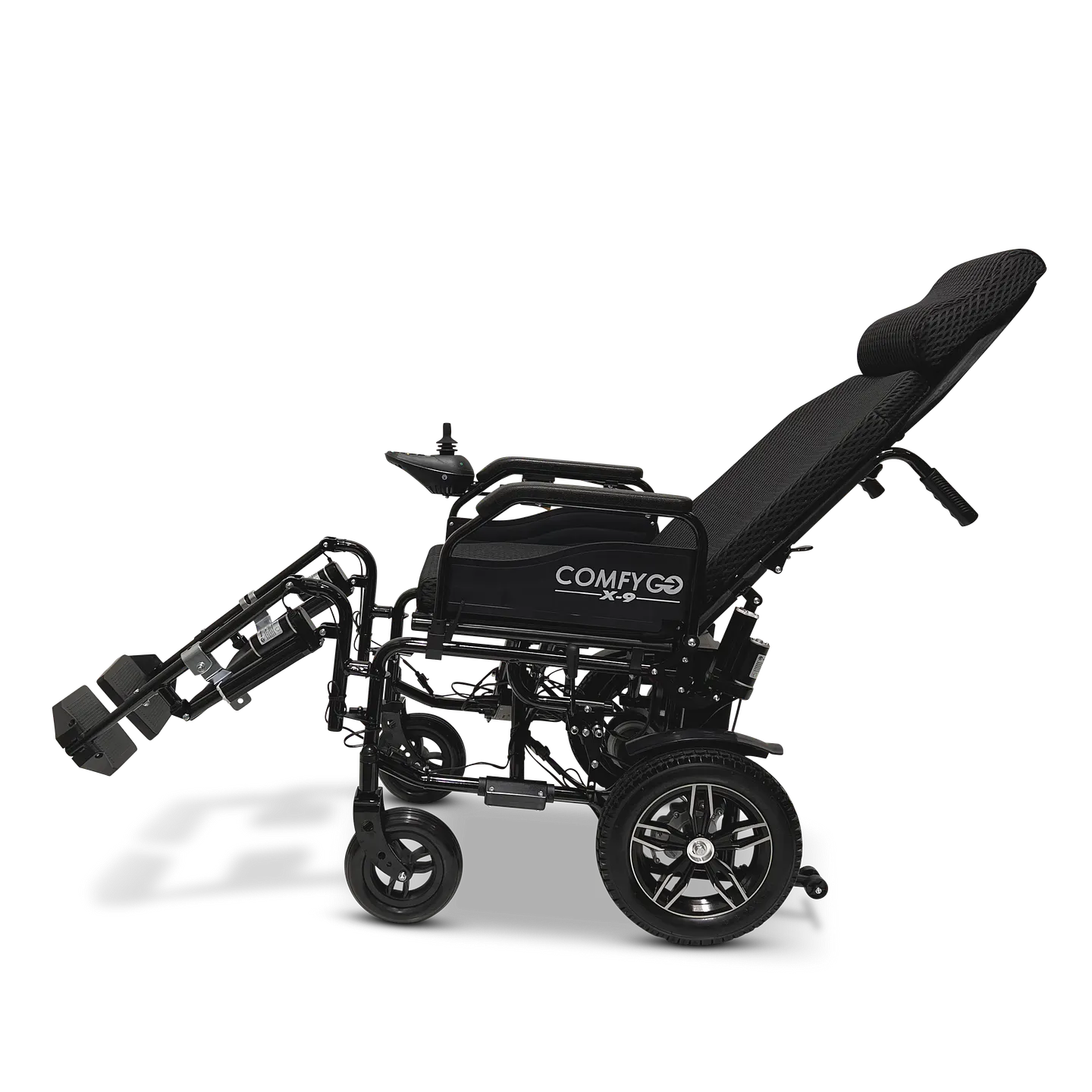

• Reclining Backrest & Lifting Leg Rests: The backrest reclines up to 55° from the upright position, providing customizable comfort. The reclining feature should only be used when stationary to avoid tipping. The right and left leg rests can be adjusted independently for a personalized experience.

Specifications

Battery and Charger
The X-9 offers two battery options:

• 12AH (288WH) – Airline/cruise approved, up to 13 miles (20 km).
• 20AH (480WH) – Up to 19 miles (30 km), not airline/cruise approved.

Charging takes 6-8 hours via a standard 24V 2A charger. A 24V 3A charger (sold separately) is recommended for faster charging of the 20AH battery.

Range

• 12AH – Up to 13 miles (20 km).
• 20AH – Up to 19 miles (30 km).
  Range may vary based on terrain, weight, and weather conditions.

Motors
The X-9 features two 250W brushless motors, providing a combined 500W power and 1.1Nm torque, enabling climbs up to 6°.

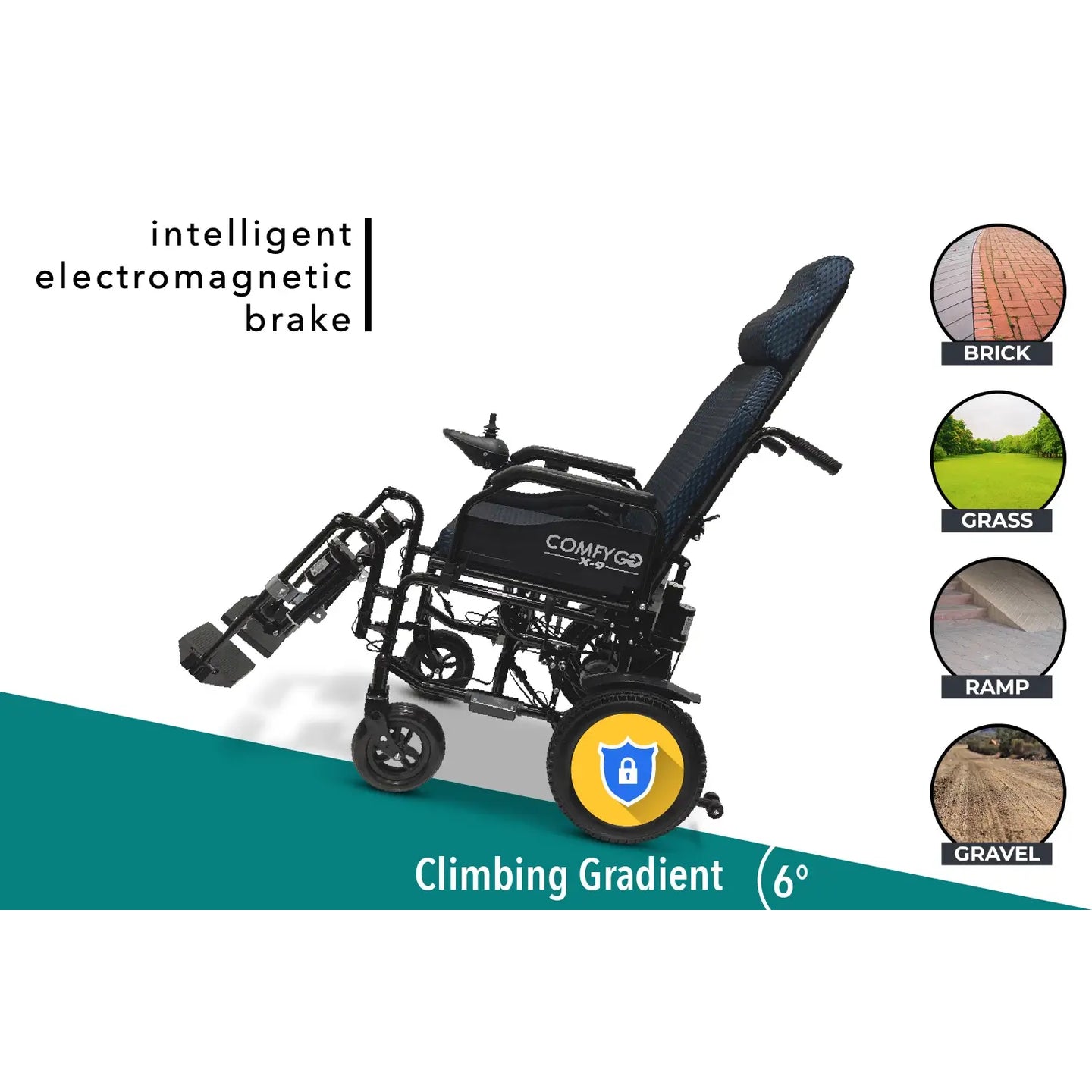

Braking System
Intelligent electromagnetic brakes offer smooth, responsive stopping, reduced wear, and enhanced safety on slopes.

Travel Friendly
The foldable X-9 supports airline and cruise travel with the 12AH battery. Check with your airline for battery regulations.

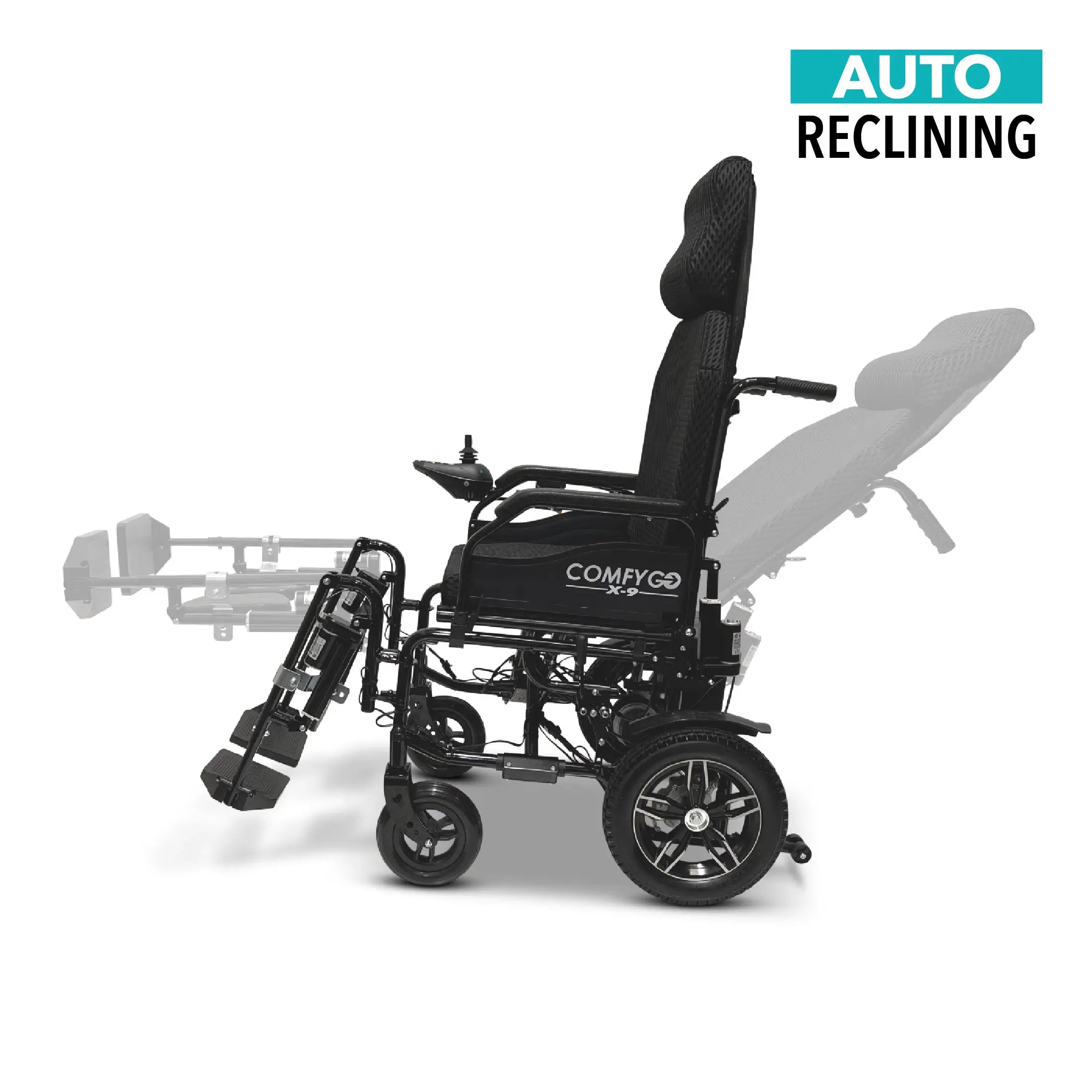

Automatic Reclining & Leg Rests
Optional auto-reclining backrest (10° to 55°) and independently adjustable leg rests provide personalized comfort. Reclining should only be used when stationary.

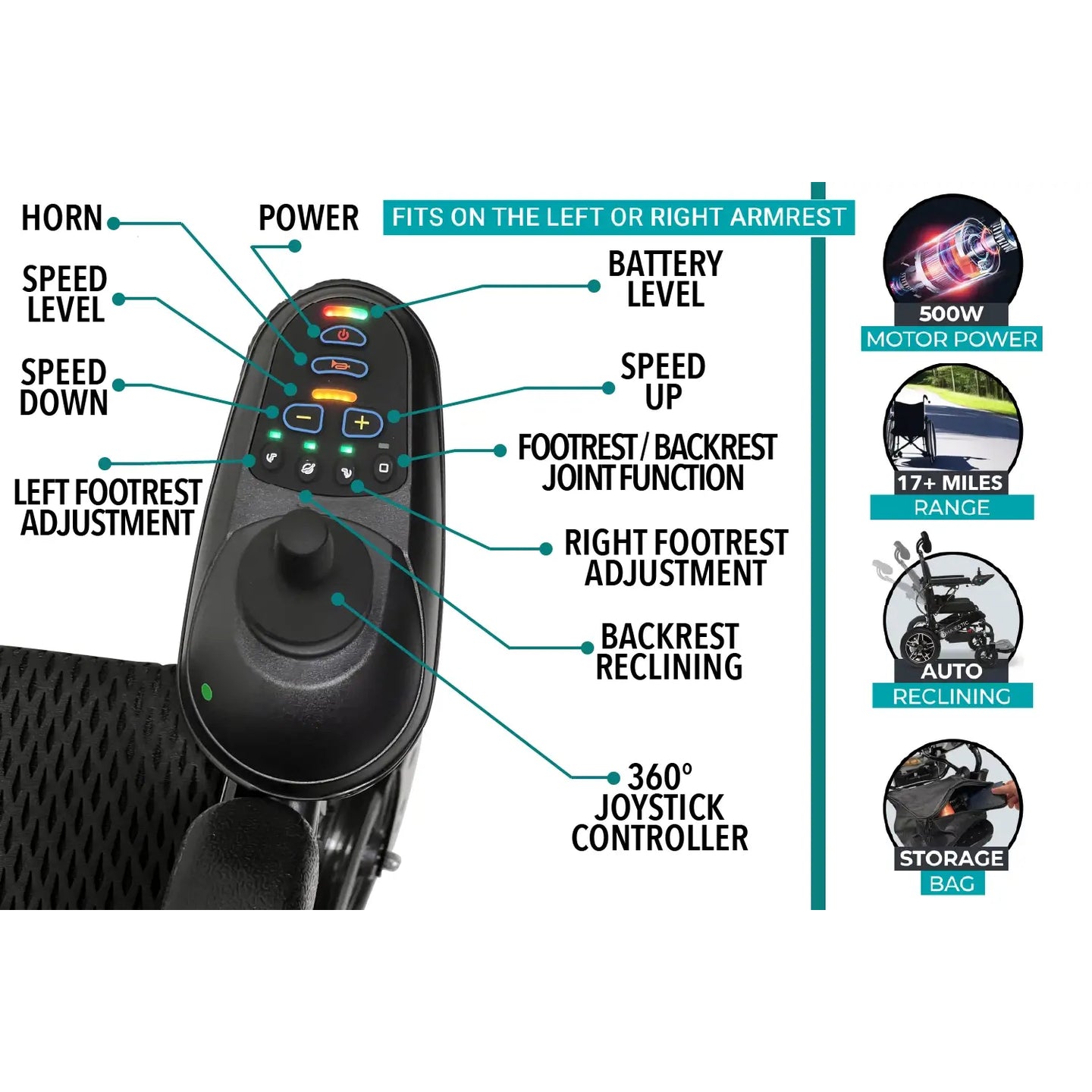

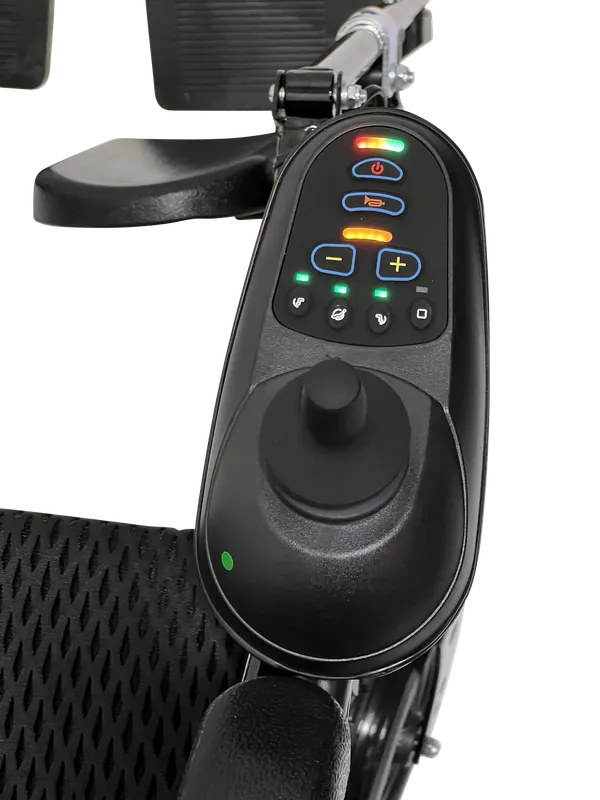

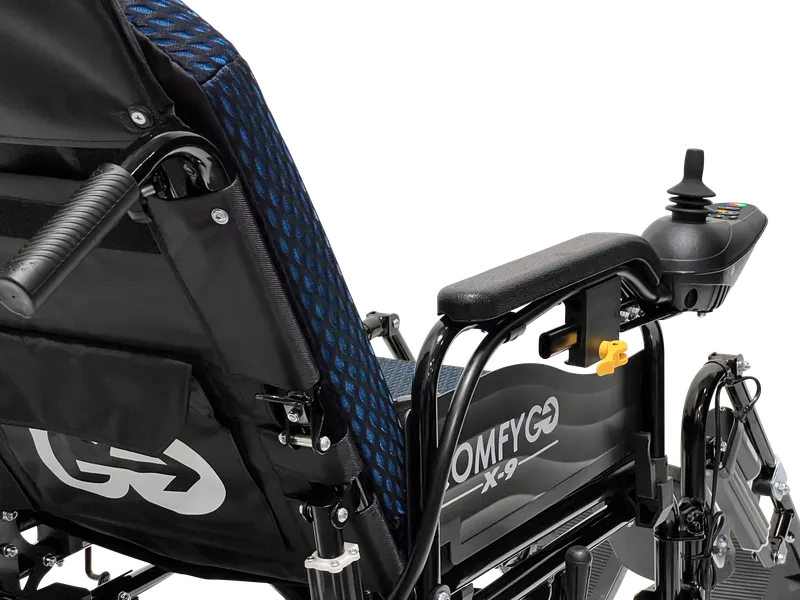

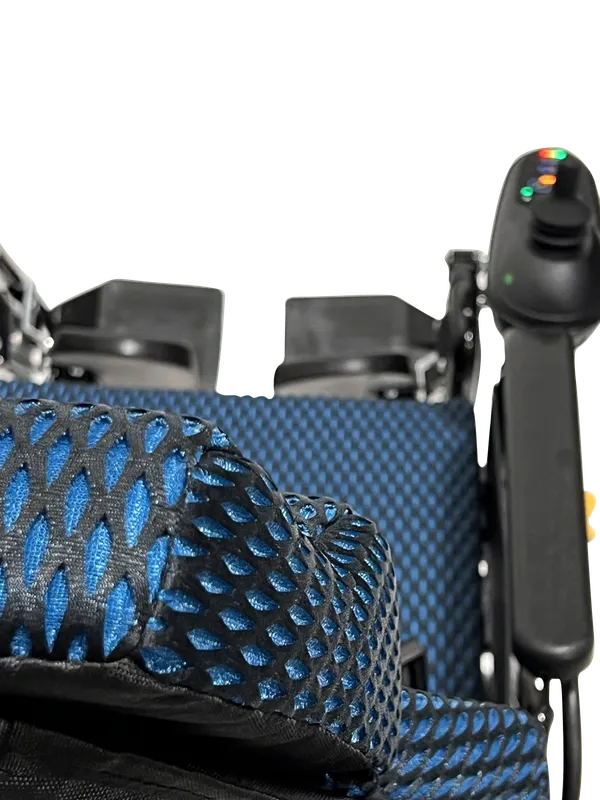

Joystick Controller
The weather-resistant 360° joystick includes:

• Power, speed, and horn controls
• Battery level display
• Recline and leg rest adjustment (if applicable)

Remote Control
The remote allows users to maneuver, adjust speed, honk, and recline from up to 30 feet away.

Speed
Five-speed levels with a top speed of 4 mph (6 km/h), adjustable from 20% to 100% of max speed.

Seating & Comfort

• Seat Width: 18” (460mm)
• Breathable cushion and backrest for maximum comfort
• Reclining model includes headrest

Frame & Durability

• Aircraft-grade aluminum alloy – lightweight, corrosion-resistant, and durable.

Weight

• Chair only: 86 lbs (39.5 kg)
• With 12AH battery: 92 lbs (42 kg)
• With 20AH battery: 93 lbs (42.5 kg)

Weight Capacity
Supports up to 310 lbs (140 kg).

Wiring & Electronics
Weather-resistant components withstand light rain but should avoid heavy rain or water exposure.

Tires

• 12” rear pneumatic tires
• 8” solid front tires

Dimensions

• Unfolded: 42” L × 25” W × 36.5” H (without headrest)
• Folded: 29” L × 17.5” W × 28.5” H

Certifications
CE certified.

Warranty

• 3 years – Frame
• 1 year – Motor, battery, electronics
• Extended ComfyGO Care options available (up to 3 years).

Box Contents
Includes a lithium-ion battery, joystick controller, remote, toolset, charger, anti-tip bars, and user manual.

Maintenance
Minimal maintenance required—regular cleaning and proper battery charging ensure longevity.
